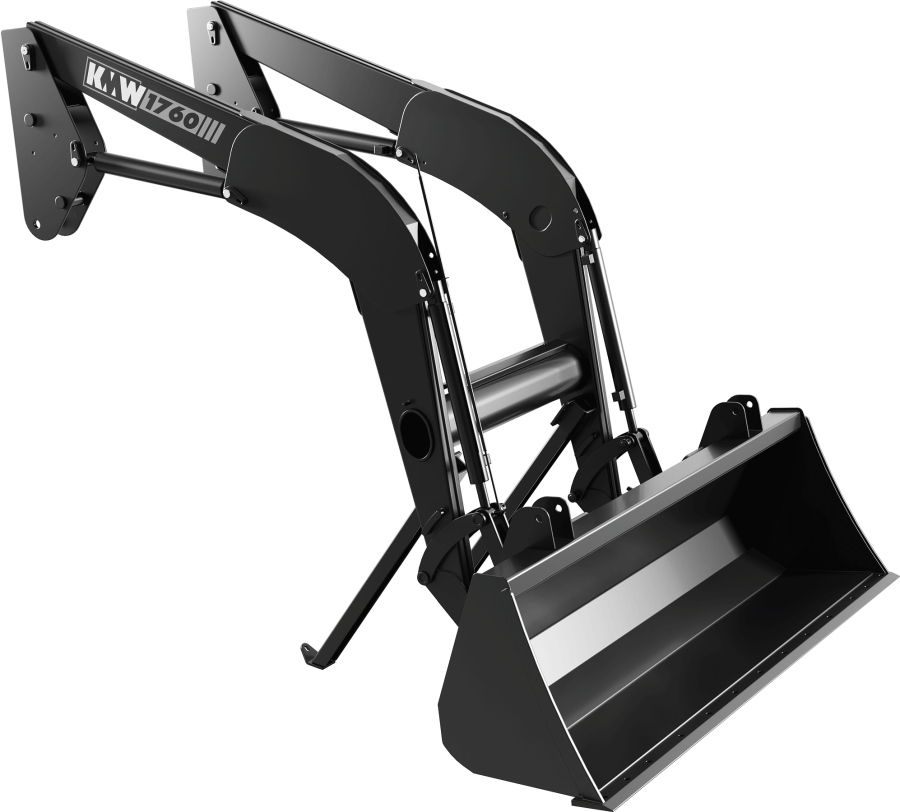

KMW 1760
Specifications
| Tractor HP | 110–190 |
|---|---|
| Maximum Lift Height to Pivot Point | 13'-8" |
| Clearance with Bucket Fully Dumped | 11'-5" |
| Reach at Maximum Lift Height | 4'-2" |
| Maximum Dump Angle | 40° |
| Reach with Bucket on Ground | 8'-5" |
| Maximum Rollback Angle | 32° |
| Digging Depth | 3.00" |
| Lift Capacity to Maximum Height at Pivot Point * | 5,600 lb |
| Lift Capacity to Maximum Height 31.5 in. Forward * | 4,100 lb |
| Lift Cylinder Diameter | 3.50" |
* Without self levelling. Specifications per ASAE S301.3. Specifications are taken from the KMW model comparison and product brochure and may change without notice.
Features
- Two-way hydraulic self levelling — lower profile than mechanical self levelling
- Mounting bracket design enhances visibility when the loader is parked
- Quick easy mounting — position parking stands, pull two pins, and park
- Solenoid operated Comfort Drive
- Euro-style Quick Attach — one lever attaching and detaching
- Heavy duty buckets and four or six tine grapple
- Custom fit grill guard
- Single lever hydraulic disconnect
- Loader valve with solenoid operated third function
Compatible tractors
- AGCO 155A
- AGCO RT120A
- AGCO RT140A
- AGCO RT165A
- Case MX-120
- Case MXU-115
- Case Magnum 7110
- Case Magnum 7240
- Case Magnum 7420
- Case Magnum 8920
- Case Maxxum 125
- Case Puma 155
- Case Puma 165
- Case Puma 195
- John Deere 7220
- New Holland 6070
- New Holland T6030
- New Holland TM120
- New Holland TM165
Mounting kits are available for the tractor models listed above; contact KMW for other models.
