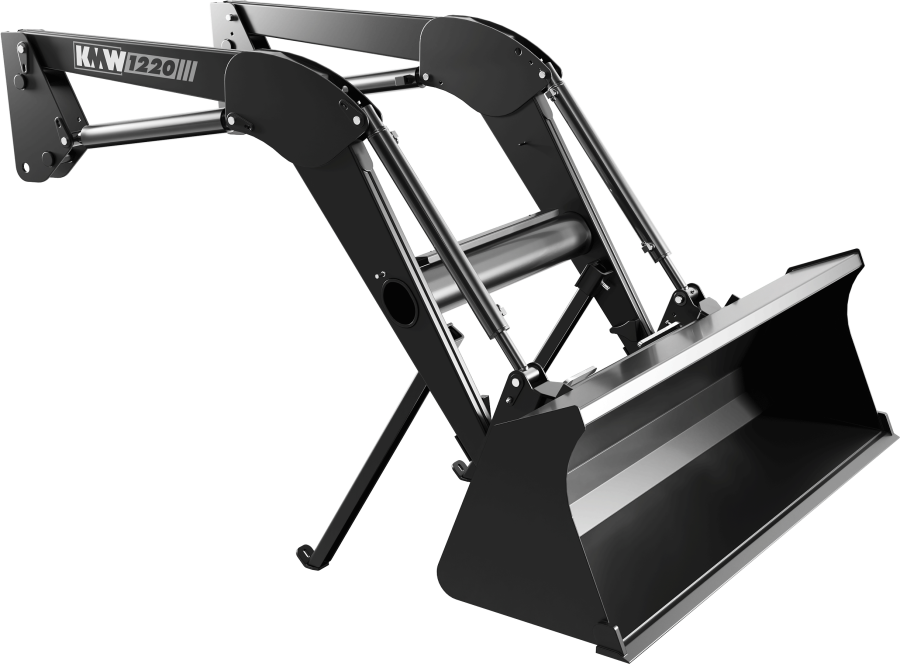

KMW 1220
Specifications
| Tractor HP | 45–80 |
|---|---|
| Maximum Lift Height to Pivot Point | 10'-4" |
| Clearance with Bucket Fully Dumped | 8'-2" |
| Reach at Maximum Lift Height | 2'-2" |
| Maximum Dump Angle | 40° |
| Reach with Bucket on Ground | 6'-1" |
| Maximum Rollback Angle | 17° |
| Digging Depth | 5.5" |
| Lift Capacity to Maximum Height at Pivot Point * | 3,609 lb |
| Lift Capacity to Maximum Height 31.5 in. Forward * | 2,406 lb |
| Lift Cylinder Diameter | 2.75" |
| Tilt Cylinder Diameter | 2.25" |
* Without self levelling. Specifications per ASAE S301.3. Specifications are taken from the KMW model comparison and product brochure and may change without notice.
Features
- Designed, tested, and manufactured in the USA
- Powder coat paint in tractor matching colors
- High strength materials utilized throughout
- Oval cross tube increases strength and weld inches
- Large radius side plates for modern appearance and strength
- Quick easy dismounting — position parking stands, pull two pins, and park
- Mounting bracket design enhances visibility when the loader is parked
- Grease fittings conveniently located for quick lubrication
- American standard threads on all base loader hoses and fittings
- Skid Steer Quick Attach as standard
Compatible tractors
- John Deere 5045
- John Deere 5300
- Kubota M6040
Mounting kits are available for the tractor models listed above; contact KMW for other models.
